Implement VRF-Lite with VXLAN

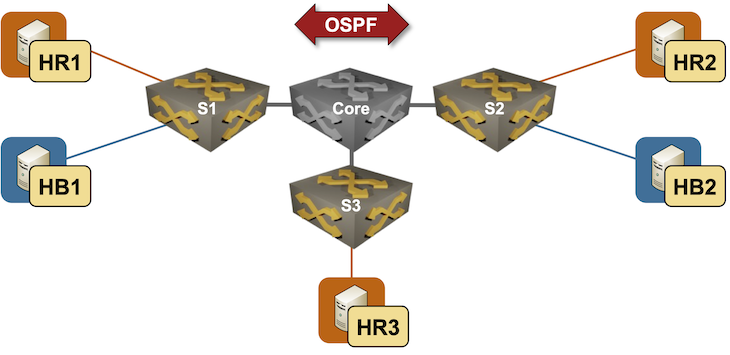

VRF-Lite is a design in which the virtual routing domains (VRFs) are built with additional point-to-point virtual links (usually VLAN segments) between network devices. For example, you’d need these VLANs in the following lab topology:

• Red VLAN (routed subinterface) on the links between the core router and S1, S2, and S3.
• Blue VLAN (routed subinterface) on the links between the core router and S1 and S2.

You can use VXLAN segments instead of point-to-point (routed) VLANs to implement VRF-Lite. For example, you could create:

• A VXLAN segment (VLAN) in VRF Red between S1, S2, and S3
• Another VXLAN segment in VRF Blue between S1 and S2.

You’ll figure out how to make that idea work in this lab exercise.

Device Requirements

You can use any device supported by the netlab OSPF and VRF configuration modules. The device should also support

• VXLAN with static ingress replication
• Routing in and out of VXLAN tunnels (VXLAN RIOT)
• Running a routing protocol on a VXLAN segment¹

Start the Lab

Assuming you already set up your lab infrastructure:

• Change directory to vxlan/5-vrf-lite
• Execute netlab up
• Log into lab devices with netlab connect and verify that the IP addresses and the OSPF are properly configured.

Existing Device Configuration

• The switches in your lab (S1, S2, and S3) are preconfigured with red and blue VRFs.
• IPv4 addresses are configured on all links in your lab (details).
• Linux hosts use the adjacent switches as the default gateways
• The switches run OSPF in area 0 in the default VRF with the core router (details).

Configuration Guidelines

You’ll implement the transport between VRF instances on S1, S2, and S3 with VXLAN segments:

• Create transport VLANs for the Red and Blue VRFs (one VLAN per VRF)
• Create VLAN interfaces for the transport VLAN. Use the following IP addresses on the VLAN interfaces:

Node	Interface	IPv4 Address	Description
s1	Vlan101	172.17.0.1/24	VLAN red (101) -> [s2,s3] (VRF: red)
	Vlan102	172.17.1.1/24	VLAN blue (102) -> [s2] (VRF: blue)
s2	Vlan101	172.17.0.2/24	VLAN red (101) -> [s1,s3] (VRF: red)
	Vlan102	172.17.1.2/24	VLAN blue (102) -> [s1] (VRF: blue)
s3	Vlan101	172.17.0.3/24	VLAN red (101) -> [s1,s2] (VRF: red)

• Using the procedure you mastered in the Extend a Single VLAN Segment with VXLAN lab exercise, create VXLAN segments to transport transit VLAN frames between S1, S2, and S3.
• Configure routing protocols between S1, S2, and S3 in Red and Blue VRFs. Use OSPF if you can and BGP as a potential fallback.

Verification

• Check VXLAN segments on S1, S2, and S3. Try to ping between the VLAN interfaces. Please note that you have to use VRF ping as the VLAN interfaces belong to Red/Blue VRFs:

Using VRF Red to ping the Red VLAN interface on S2 from S1

s1#ping vrf red 172.17.0.2
PING 172.17.0.2 (172.17.0.2) 72(100) bytes of data.
80 bytes from 172.17.0.2: icmp_seq=1 ttl=64 time=1.87 ms
80 bytes from 172.17.0.2: icmp_seq=2 ttl=64 time=1.08 ms
80 bytes from 172.17.0.2: icmp_seq=3 ttl=64 time=0.898 ms
80 bytes from 172.17.0.2: icmp_seq=4 ttl=64 time=1.05 ms
80 bytes from 172.17.0.2: icmp_seq=5 ttl=64 time=1.02 ms

--- 172.17.0.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 8ms
rtt min/avg/max/mdev = 0.898/1.186/1.874/0.349 ms, ipg/ewma 2.002/1.518 ms

• Check in-VRF routing protocol adjacences between S1, S2, and S3.

OSPF neighbors (global and VRF) on S1

s1#show ip ospf neighbor vrf all
Neighbor ID     Instance VRF      Pri State                  Dead Time   Address         Interface
10.0.0.4        1        default  1   FULL                   00:00:32    10.1.0.1        Ethernet1
10.0.0.2        100      red      1   FULL/BDR               00:00:31    172.17.0.2      Vlan101
10.0.0.3        100      red      1   FULL/DR                00:00:30    172.17.0.3      Vlan101
10.0.0.2        101      blue     0   FULL                   00:00:31    172.17.1.2      Vlan102

• Check VRF routing tables on S1, S2, and S3. Remote IP prefixes should be reachable as OSPF routes with next hops attached to the VLAN interfaces.

Routing table for VRF Red on S1

s1#show ip route vrf red | begin Gateway
Gateway of last resort is not set

 C        172.16.0.0/24
           directly connected, Ethernet2
 O        172.16.1.0/24 [110/20]
           via 172.17.0.2, Vlan101
 O        172.16.2.0/24 [110/20]
           via 172.17.0.3, Vlan101
 C        172.17.0.0/24
           directly connected, Vlan101

• Ping between hr1, hr2, and hr3
• Ping between hb1 and hb2

Cheating

• Shut down your lab with the netlab down command
• Start the lab from the solution.yml topology with the netlab up solution.yml command
• Explore the S1/S2/S3 device configuration

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
s1	Ethernet1	core	eth1
s2	Ethernet1	core	eth2
s3	Ethernet1	core	eth3
hr1	eth1	s1	Ethernet2
hr2	eth1	s2	Ethernet2
hr3	eth1	s3	Ethernet2
hb1	eth1	s1	Ethernet3
hb2	eth1	s2	Ethernet3

Lab Addressing

Node/Interface	IPv4 Address	IPv6 Address	Description
s1	10.0.0.1/32		Loopback
Ethernet1	10.1.0.2/30		s1 -> core
Ethernet2	172.16.0.1/24		s1 -> hr1 (VRF: red)
Ethernet3	172.16.3.1/24		s1 -> hb1 (VRF: blue)
s2	10.0.0.2/32		Loopback
Ethernet1	10.1.0.6/30		s2 -> core
Ethernet2	172.16.1.2/24		s2 -> hr2 (VRF: red)
Ethernet3	172.16.4.2/24		s2 -> hb2 (VRF: blue)
s3	10.0.0.3/32		Loopback
Ethernet1	10.1.0.10/30		s3 -> core
Ethernet2	172.16.2.3/24		s3 -> hr3 (VRF: red)
core	10.0.0.4/32		Loopback
eth1	10.1.0.1/30		core -> s1
eth2	10.1.0.5/30		core -> s2
eth3	10.1.0.9/30		core -> s3
hr1
eth1	172.16.0.5/24		hr1 -> s1
hr2
eth1	172.16.1.6/24		hr2 -> s2
hr3
eth1	172.16.2.7/24		hr3 -> s3
hb1
eth1	172.16.3.8/24		hb1 -> s1
hb2
eth1	172.16.4.9/24		hb2 -> s2

OSPF Routing (Area 0)

Router	Interface	IPv4 Address	Neighbor(s)
s1	Loopback	10.0.0.1/32
	Ethernet1	10.1.0.2/30	core
s2	Loopback	10.0.0.2/32
	Ethernet1	10.1.0.6/30	core
s3	Loopback	10.0.0.3/32
	Ethernet1	10.1.0.10/30	core
core	Loopback	10.0.0.4/32
	eth1	10.1.0.1/30	s1
	eth2	10.1.0.5/30	s2
	eth3	10.1.0.9/30	s3
