Building a Private VLAN with EVPN/VXLAN

A Private VLAN (PVLAN) is (according to Wikipedia) a VLAN in which devices connected to a private port can communicate with devices connected to uplink ports but not with those connected to other private ports.

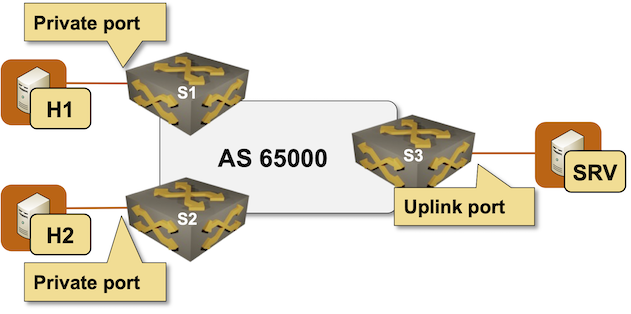

For example, in the lab topology we’ll be using, H1 and H2 can communicate with SRV but not with each other.

In this lab exercise, you’ll implement the private VLAN using the concepts you mastered in the Build an EVPN-based MAC-VRF instance exercise, but using slightly different route targets.

Device Requirements

You can use any device supported by the netlab OSPF, BGP, and VLAN configuration modules. The device should support VXLAN and EVPN.

The Linux hosts attached to the lab switches are implemented with containers; your netlab installation will thus have to include Docker and containerlab¹.

Start the Lab

Assuming you already set up your lab infrastructure:

• Change directory to services/1-pvlan
• Execute netlab up
• Log into lab devices with netlab connect and verify that the IP addresses and the OSPF/BGP routing are properly configured.

The default lab topology (topology.yml) configures a simple EVPN MAC-VRF. Start a simplified lab with netlab up minimal.yml if netlab cannot configure VXLAN or EVPN on the device you want to use (you’ll have to configure VXLAN and EVPN yourself).

Existing Device Configuration

• The switches in your lab (S1, S2, and S3) are preconfigured with red VLAN using VLAN tag 100 and VXLAN VNI 1000.
• IPv4 addresses are configured on Linux hosts, switch loopback interfaces, and the interswitch link (details).
• The switches run OSPF in area 0 across the interswitch link (details).
• The switches have IBGP sessions between their loopback interfaces (details). These sessions are configured to exchange IPv4 and EVPN prefixes.
• A MAC-VRF is configured for the red VLAN using import- and export route target 65000:100

Configuration Tasks

Change the route targets used in the red MAC-VRF as follows:

• The MAC-VRFs with private ports should have export route target 65000:200 (private MACs) and import route target 65000:201 (uplink MACs).
• The MAC-VRFs with uplink ports should have export route target 65000:201 (uplink MACs) and two import route targets: 65000:201 (uplink MACs) and 65000:200 (private MACs).

The required route targets are summarized in the following table:

switch	export RT	import RT
S1	65000:200	65000:201
S2	65000:200	65000:201
S3	65000:201	65000:200 65000:201

Verification

• H1 and H2 should be able to ping SRV
• H1 should not be able to ping H2 (or vice versa)

Troubleshooting

Start with the troubleshooting hints from the Build an EVPN-based MAC-VRF instance lab exercise, then focus on the PVLAN-specific EVPN routes:

• Inspect the EVPN IMET (type-3) routes. Each switch should have three IMET routes (one per switch). Two of those routes (S1/S2) should have route target 65000:200, the third one (S3) should have route target 65000:201. All three routes should have the same VXLAN VNI.

EVPN IMET routes on S1 running Arista EOS

s1#show bgp evpn route-type imet detail
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
BGP routing table entry for imet 10.0.0.1, Route Distinguisher: 10.0.0.1:100
 Paths: 1 available
  Local
    - from - (0.0.0.0)
      Origin IGP, metric -, localpref -, weight 0, tag 0, valid, local, best
      Extended Community: Route-Target-AS:65000:200 TunnelEncap:tunnelTypeVxlan
      VNI: 1000
      PMSI Tunnel: Ingress Replication, MPLS Label: 1000, Leaf Information Required: false, Tunnel ID: 10.0.0.1
BGP routing table entry for imet 10.0.0.2, Route Distinguisher: 10.0.0.2:100
 Paths: 1 available
  Local
    10.0.0.2 from 10.0.0.2 (10.0.0.2)
      Origin IGP, metric -, localpref 100, weight 0, tag 0, valid, internal, best
      Extended Community: Route-Target-AS:65000:200 TunnelEncap:tunnelTypeVxlan
      VNI: 1000
      PMSI Tunnel: Ingress Replication, MPLS Label: 1000, Leaf Information Required: false, Tunnel ID: 10.0.0.2
BGP routing table entry for imet 10.0.0.3, Route Distinguisher: 10.0.0.3:100
 Paths: 1 available
  Local
    10.0.0.3 from 10.0.0.3 (10.0.0.3)
      Origin IGP, metric -, localpref 100, weight 0, tag 0, valid, internal, best
      Extended Community: Route-Target-AS:65000:201 TunnelEncap:tunnelTypeVxlan
      VNI: 1000
      PMSI Tunnel: Ingress Replication, MPLS Label: 1000, Leaf Information Required: false, Tunnel ID: 10.0.0.3

• The route targets in the IMET routes are used to build VXLAN ingress replication lists. S1 and S2 should have just S3 as the remote VTEP; S3 should have both S1 and S2 as remote VTEPs:

Remote VTEPs on S1 running Arista EOS

s1#show vxlan vtep
Remote VTEPS for Vxlan1:

VTEP           Tunnel Type(s)
-------------- --------------
10.0.0.3       flood

Total number of remote VTEPS:  1

Remote VTEPs on S3 running Arista EOS

s3#show vxlan vtep
Remote VTEPS for Vxlan1:

VTEP           Tunnel Type(s)
-------------- --------------
10.0.0.1       flood
10.0.0.2       flood

Total number of remote VTEPS:  2

Since you started with a working MAC-VRF instance, the verification steps should pass once you see the expected remote VTEPs (indicating that the route targets are configured correctly). Nonetheless, you might want to inspect the MAC/IP (type-2) EVPN routes and compare them to the MAC address table.

For example, S1 has three MAC/IP EVPN routes in its BGP table but only two addresses in the MAC address table for the red VLAN due to a route target mismatch on the EVPN route advertised by S2:

EVPN MAC-IP routes on S1 running Arista EOS

s1#show bgp evpn route-type mac-ip
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.1:100 mac-ip aac1.aba9.cac6
                                 -                     -       -       0       i
 * >      RD: 10.0.0.3:100 mac-ip aac1.abcf.1fb1
                                 10.0.0.3              -       100     0       i
 * >      RD: 10.0.0.2:100 mac-ip aac1.abf8.d7c2
                                 10.0.0.2              -       100     0       i

MAC address table for the red VLAN on S1 running Arista EOS

s1#show mac address-table vlan 100
          Mac Address Table
------------------------------------------------------------------

Vlan    Mac Address       Type        Ports      Moves   Last Move
----    -----------       ----        -----      -----   ---------
 100    aac1.aba9.cac6    DYNAMIC     Et3        1       0:01:13 ago
 100    aac1.abcf.1fb1    DYNAMIC     Vx1        1       0:01:13 ago
Total Mac Addresses for this criterion: 2

          Multicast Mac Address Table
------------------------------------------------------------------

Vlan    Mac Address       Type        Ports
----    -----------       ----        -----
Total Mac Addresses for this criterion: 0

Cheating

• Shut down your lab with the netlab down command
• Start the lab from the solution.yml topology with the netlab up solution.yml command
• Explore the device configurations

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
s1	Ethernet1	s2	Ethernet1
s2	Ethernet2	s3	Ethernet1
s3	Ethernet2	s1	Ethernet2
s1	Ethernet3	h1	eth1
s2	Ethernet3	h2	eth1
s3	Ethernet3	srv	eth1

Lab Addressing

Node/Interface	IPv4 Address	IPv6 Address	Description
s1	10.0.0.1/32		Loopback
Ethernet1	10.1.0.1/30		s1 -> s2
Ethernet2	10.1.0.9/30		s1 -> s3
s2	10.0.0.2/32		Loopback
Ethernet1	10.1.0.2/30		s2 -> s1
Ethernet2	10.1.0.5/30		s2 -> s3
s3	10.0.0.3/32		Loopback
Ethernet1	10.1.0.6/30		s3 -> s2
Ethernet2	10.1.0.10/30		s3 -> s1
h1
eth1	172.16.0.4/24		h1 -> [s1,h2,s2,srv,s3]
h2
eth1	172.16.0.5/24		h2 -> [h1,s1,s2,srv,s3]
srv
eth1	172.16.0.6/24		srv -> [h1,s1,h2,s2,s3]

OSPF Routing (Area 0)

Router	Interface	IPv4 Address	Neighbor(s)
s1	Loopback	10.0.0.1/32
	Ethernet1	10.1.0.1/30	s2
	Ethernet2	10.1.0.9/30	s3
s2	Loopback	10.0.0.2/32
	Ethernet1	10.1.0.2/30	s1
	Ethernet2	10.1.0.5/30	s3
s3	Loopback	10.0.0.3/32
	Ethernet1	10.1.0.6/30	s2
	Ethernet2	10.1.0.10/30	s1

IBGP Sessions

Node	Router ID/ Neighbor	Router AS/ Neighbor AS	Neighbor IPv4
s1	10.0.0.1	65000
	s2	65000	10.0.0.2
	s3	65000	10.0.0.3
s2	10.0.0.2	65000
	s1	65000	10.0.0.1
	s3	65000	10.0.0.3
s3	10.0.0.3	65000
	s1	65000	10.0.0.1
	s2	65000	10.0.0.2
