Proxy ARP in EVPN MAC-VRF Instances

IP-to-MAC address resolution using ARP/ND is the biggest source of flooding traffic in most IP networks, creating significant challenges in large layer-2 domains and forcing some Internet eXchange Point (IXP) operators to deploy countermeasures such as ARP sponge.

As EVPN type-2 (MAC/IP) routes already carry MAC and IPv4/IPv6 address information, we might be able to use that information to implement a proxy ARP service (also called ARP suppression) on PE-devices – the local PE-device would reply to ARP/ND requests using EVPN-derived information instead of flooding them to all other PE-devices participating in the same MAC-VRF.

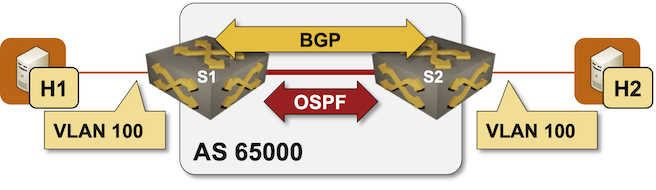

You can check out whether the devices you plan to use support the ARP suppression functionality in this lab exercise that uses a very simple topology with a single MAC-VRF instance, two hosts, and two switches.

Device Requirements

You can use any device supported by the netlab OSPF, BGP, VRF, and VLAN configuration modules. netlab will also try to configure VXLAN, EVPN, and MAC-VRF for the tenant VLAN.

Start the Lab

Assuming you already set up your lab infrastructure:

• Change directory to evpn/8-proxy-arp
• Execute netlab up
• Log into lab devices with netlab connect and verify that they are properly configured.
• If netlab configured VXLAN and EVPN on your devices, ping H2 from H1 to verify everything works as expected.

Existing Device Configuration

• The switches in your lab are preconfigured with red VLAN using VLAN tag 100 and VXLAN VNI 10100.
• The red VLAN is in tenant VRF
• IPv4 addresses are configured on all links and VLANs (details).
• The switches run OSPF in area 0 across the interswitch link (details).
• The switches have IBGP sessions between their loopback interfaces (details). These sessions are configured to exchange IPv4 and EVPN prefixes.
• A MAC-VRF is configured for the red VLAN using import- and export route target 65000:100

Establishing the Baseline

You might want to observe the ARP traffic between H1 and H2 before starting device configuration:

1. Start netlab capture h2 eth1 arp in a terminal window to capture ARP requests sent to H2 and its replies.
2. Connect to H1 with netlab connect h1
3. Execute arp -d h2 to clear the ARP entry for H2¹ followed by ping h2 -c 1 to trigger the ARP address resolution.
4. You should see an ARP request and a corresponding ARP reply in the netlab capture printout every time you execute the above commands

ARP traffic observed on the eth1 interface of H2

$ netlab capture h2 eth1 arp
Starting packet capture on h2/eth1: sudo ip netns exec clab-proxyarp-h2 tcpdump -i eth1 --immediate-mode -l -vv arp
tcpdump: listening on eth1, link-type EN10MB (Ethernet), snapshot length 262144 bytes
13:25:57.433726 ARP, Ethernet (len 6), IPv4 (len 4), Request who-has 172.16.0.4 tell 172.16.0.3, length 46
13:25:57.433742 ARP, Ethernet (len 6), IPv4 (len 4), Reply 172.16.0.4 is-at aa:c1:ab:0d:10:74 (oui Unknown), length 28

You should also log into S1 and inspect its EVPN MAC-IP routes. Some devices add IP information to those routes without additional configuration (for example, Cisco IOS/XE). Others (for example, Arista EOS or FRRouting) create MAC-IP routes with minimal information and add IP information to the MAC-IP routes only after receiving an ARP query for their own IP address.

EVPN MAC-IP routes on S1 running Arista EOS after H1 pinged H2

s1#show bgp evpn route-type mac-ip
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.2:100 mac-ip aac1.ab0d.1074
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.1:100 mac-ip aac1.ab9d.5fad
                                 -                     -       -       0       i

EVPN routes on S1 running Cisco IOS/XE after H1 pinged H2

s1#show bgp l2vpn evpn rd 10.0.0.1:100
BGP table version is 13, local router ID is 10.0.0.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
              t secondary path, L long-lived-stale,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 10.0.0.1:100
 *>i  [2][10.0.0.1:100][0][48][AAC1AB118027][0][*]/20
                      10.0.0.2                 0    100      0 ?
 *>   [2][10.0.0.1:100][0][48][AAC1AB2DA087][0][*]/20
                      0.0.0.0                            32768 ?
 *>i  [2][10.0.0.1:100][0][48][AAC1AB56A391][0][*]/20
                      10.0.0.2                 0    100      0 ?
 *>i  [2][10.0.0.1:100][0][48][AAC1AB56A391][32][172.16.0.4]/24
                      10.0.0.2                 0    100      0 ?
 *>   [2][10.0.0.1:100][0][48][AAC1ABAE4A2B][0][*]/20
                      0.0.0.0                            32768 ?
 *>   [2][10.0.0.1:100][0][48][AAC1ABAE4A2B][32][172.16.0.3]/24
                      0.0.0.0                            32768 ?
 *>   [3][10.0.0.1:100][0][32][10.0.0.1]/17
                      0.0.0.0                            32768 ?
     Network          Next Hop            Metric LocPrf Weight Path
 *>i  [3][10.0.0.1:100][0][32][10.0.0.2]/17
                      10.0.0.2                 0    100      0 ?

Configuration Tasks

You have to configure two EVPN-related parameters:

• S1 and S2 should listen to all ARP traffic on the red VLAN and include IP information in type-2 EVPN routes without receiving a direct ARP request.
• S1 and S2 should respond to ARP requests for other IP hosts attached to the same subnet and reply with information received in EVPN MAC-IP routes.

The configuration details are extremely device-specific. These nerd knobs can be configured at the interface level or globally. For example, you have to use router l2-vpn configuration on Arista EOS. Also, when configuring ARP suppression globally, you often have to specify the IP subnets in which ARPs should be suppressed, usually with an IP prefix-list.

Verification

• Perform the “clear ARP cache, ping the other host” procedure on H1 and H2 (you have to do it on both hosts to trigger ARP requests from H1 and H2)
• Examine the EVPN MAC-IP routes. There should be an entry with MAC and IP address for both hosts, even when the hosts never contact the switches.

EVPN MAC-IP routes on S1 running Arista EOS

s1#show bgp evpn route-type mac-ip
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.1:100 mac-ip aac1.abdd.90e1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.1:100 mac-ip aac1.abdd.90e1 172.16.0.3
                                 -                     -       -       0       i
 * >      RD: 10.0.0.2:100 mac-ip aac1.abe0.43e3
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.2:100 mac-ip aac1.abe0.43e3 172.16.0.4
                                 10.0.0.2              -       100     0       i

• You’ll be able to see VLAN ARP entries on some platforms, even though neither H1 nor H2 ever sent an ARP request to S1 or S2.

ARP table in the tenant VRF on S1 running Arista EOS

s1#show arp vrf tenant
Address         Age (sec)  Hardware Addr   Interface
172.16.0.3        0:00:04  aac1.abdd.90e1  Vlan100, Ethernet2
172.16.0.4              -  aac1.abe0.43e3  Vlan100, Vxlan1

• Use the netlab capture h2 eth1 arp or icmp command to start the capture of ARP and ICMP packets on H2 Ethernet interface. You should not see any ARP requests preceding the ICMP packets after clearing the ARP cache on H1 and pinging H2.

Cheating

If you’re using Arista EOS, you can use the netlab config -l s1,s2 proxy_arp to configure ARP suppression on S1 and S2.

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
s1	Ethernet1	s2	Ethernet1
h1	eth1	s1	Ethernet2
h2	eth1	s2	Ethernet2

Lab Addressing

Node/Interface	IPv4 Address	IPv6 Address	Description
s1	10.0.0.1/32		Loopback
Ethernet1	10.1.0.1/30		s1 -> s2
Vlan100	172.16.0.1/24		VLAN red (100) -> [h1,h2,s2] (VRF: tenant)
s2	10.0.0.2/32		Loopback
Ethernet1	10.1.0.2/30		s2 -> s1
Vlan100	172.16.0.2/24		VLAN red (100) -> [h1,s1,h2] (VRF: tenant)
h1
eth1	172.16.0.3/24		h1 -> [s1,h2,s2]
h2
eth1	172.16.0.4/24		h2 -> [h1,s1,s2]

OSPF Routing (Area 0)

Router	Interface	IPv4 Address	Neighbor(s)
s1	Loopback	10.0.0.1/32
	Ethernet1	10.1.0.1/30	s2
s2	Loopback	10.0.0.2/32
	Ethernet1	10.1.0.2/30	s1

IBGP Sessions

Node	Router ID/ Neighbor	Router AS/ Neighbor AS	Neighbor IPv4
s1	10.0.0.1	65000
	s2	65000	10.0.0.2
s2	10.0.0.2	65000
	s1	65000	10.0.0.1
