Symmetric IRB with IP-VRF EVPN instances

In the Build an EVPN-based MAC-VRF instance lab exercise, you learned how to configure a MAC-VRF instance to enable bridging across a VXLAN segment with the EVPN control plane. In the VPN IP Routing in EVPN Fabrics one, you used an IP-VRF instance to implement IP routing for a tenant network. Can we combine the two approaches? Definitely, you’ll master that in this lab exercise.

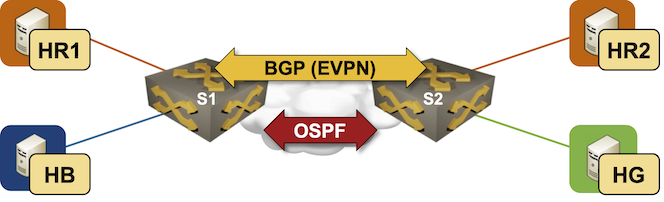

Lab topology

To build a network for our tenant, you could use asymmetric IRB: extend the blue VLAN to S2, extend the green VLAN to S1, and create three MAC-VRF instances. We’ll use a much better approach: we’ll configure a MAC-VRF instance to extend the red VLAN and an EVPN IP-VRF instance with a transit VXLAN segment to route between the three VLANs.

Tip

This lab exercise does not introduce new concepts. It’s a comprehensive recap of everything you’ve learned so far.

Device Requirements

You can use any device supported by the netlab OSPF, BGP, VLAN, and VRF configuration modules. The device should also support:

VXLAN encapsulation with EVPN control plane
EVPN transit VNI
EVPN type-5 routes
Routing in and out of VXLAN tunnels (VXLAN RIOT)

Start the Lab

Assuming you already set up your lab infrastructure:

Change directory to evpn/7-symm-irb
Execute netlab up
Log into lab devices with netlab connect and verify that the IP addresses and IP routing are properly configured.

Existing Device Configuration

The switches in your lab (S1 and S2) are preconfigured with the red, blue, and green VLANs.
IPv4 addresses are configured on links and VLANs (details).
Linux hosts in the blue and green VLAN use the adjacent switches as the default gateways
Linux hosts in the red VLAN rely on an anycast gateway you’ll configure as part of this lab exercise
The switches run OSPF in area 0 in the default VRF with the core router (details).
There’s a full mesh of IBGP sessions between the three switches.

Configuration Guidelines

Use the following steps to configure S1 and S2:

Configure the anycast first-hop gateway (172.16.11.42) in the red VLAN using what you’ve learned in the Integrated Routing and Bridging (IRB) with EVPN exercise
Using the process you’ve mastered in the Build an EVPN-based MAC-VRF instance lab exercise, enable EVPN and configure a MAC-VRF instance for the red VLAN.

Parameter	Value
EVPN instance	101
VXLAN VNI	10101
Route target	65000:101

Using the knowledge gained in the VPN IP Routing in EVPN Fabrics lab exercise, configure an IP-VRF instance for the tenant VRF

Parameter	Value
EVPN instance	1
Transit (L3) VNI	5042
Route distinguisher	65000:1
Route target	65000:1

Verification

Check the EVPN routes. You should see the IMET routes for the red VLAN and the IP-PREFIX routes for all three subnets. Both routers should originate the prefix for the red subnet.

EVPN routes on S1 running Arista EOS

s1#show bgp evpn
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.1:101 imet 10.0.0.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.1:102 imet 10.0.0.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.2:101 imet 10.0.0.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.2:103 imet 10.0.0.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 65000:1 ip-prefix 172.16.11.0/24
                                 -                     -       -       0       i
 *        RD: 65000:1 ip-prefix 172.16.11.0/24
                                 10.0.0.2              -       100     0       i
 * >      RD: 65000:1 ip-prefix 172.16.12.0/24
                                 -                     -       -       0       i
 * >      RD: 65000:1 ip-prefix 172.16.13.0/24
                                 10.0.0.2              -       100     0       i

Check the VRF IP routing table. It should contain all three subnets

VRF IP routing table on S1 running Arista EOS

s1#show ip route vrf tenant | begin Gateway
Gateway of last resort is not set

 C        172.16.11.0/24
           directly connected, Vlan101
 C        172.16.12.0/24
           directly connected, Vlan102
 B I      172.16.13.0/24 [200/0]
           via VTEP 10.0.0.2 VNI 5042 router-mac 00:1c:73:c8:82:78 local-interface Vxlan1

Ping hr2 from hr1. If the ping doesn’t work, you misconfigured the MAC-VRF instance and might revisit these troubleshooting hints
Ping hg from hb. If you get no response, your IP-VRF instance doesn’t work correctly; use these troubleshooting hints
Ping hb from hr1 and hg from hr2. These pings rely on the (local) anycast gateway in the red VLAN. If they don’t work, figure out what you missed there.

Does it all work? Fantastic. You mastered the most important EVPN concepts and implementation details (but don’t skip the packet forwarding recap). Let’s move into more arcane topics, starting with Proxy ARP in EVPN MAC-VRF Instances.

Cheating

Can’t get your lab to work? Maybe you can cheat your way through it:

Shut down your lab with the netlab down command
Start the lab from the solution.yml topology with the netlab up solution.yml command
Explore the S1/S2 device configuration

Recap: Packet Forwarding in Tenant Network

Let’s recap how we implemented the packet forwarding in the tenant network:

Bridging within the red VLAN uses a MAC-VRF instance
Routing within the tenant VRF uses an IP-VRF instance
Both switches act as first-hop gateways for the attached hosts

Lab topology

That setup results in the following forwarding paths:

From	To	Forwarding mechanism	Forwarding path
HR1	HR2	Bridging	Bridging into red VNI on S1 Bridging from red VNI into red VLAN on S2
HB	HG	Routing	Routing into transit VNI on S1 Routing from transit VNI into green VLAN on S2
HB	HR2	Routing + bridging	Routing into red VLAN on S1 Bridging into red VNI on S1 Bridging from red VNI into red VLAN on S2
HR1	HG	Routing	Routing into transit VNI on S1 Routing from transit VNI into green VLAN on S2

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
s1	Ethernet1	s2	Ethernet1
hr1	eth1	s1	Ethernet2
hr2	eth1	s2	Ethernet2
hb	eth1	s1	Ethernet3
hg	eth1	s2	Ethernet3

Lab Addressing

Node/Interface	IPv4 Address	Description
s1	10.0.0.1/32	Loopback
Ethernet1	10.1.0.1/30	s1 -> s2
Vlan101	172.16.11.1/24	VLAN red (101) -> [hr1,hr2,s2] (VRF: tenant)
Vlan102	172.16.12.1/24	VLAN blue (102) -> [hb] (VRF: tenant)
s2	10.0.0.2/32	Loopback
Ethernet1	10.1.0.2/30	s2 -> s1
Vlan101	172.16.11.2/24	VLAN red (101) -> [hr1,s1,hr2] (VRF: tenant)
Vlan103	172.16.13.2/24	VLAN green (103) -> [hg] (VRF: tenant)
hb
eth1	172.16.12.3/24	hb -> [s1]
hg
eth1	172.16.13.4/24	hg -> [s2]
hr1
eth1	172.16.11.5/24	hr1 -> [s1,hr2,s2]
hr2
eth1	172.16.11.6/24	hr2 -> [hr1,s1,s2]

OSPF Routing (Area 0)

Router	Interface	IPv4 Address	Neighbor(s)
s1	Loopback	10.0.0.1/32
	Ethernet1	10.1.0.1/30	s2
s2	Loopback	10.0.0.2/32
	Ethernet1	10.1.0.2/30	s1

BGP Routing

Node	Router ID/ Neighbor	Router AS/ Neighbor AS	Neighbor IPv4
s1	10.0.0.1	65000
	s2	65000	10.0.0.2
s2	10.0.0.2	65000
	s1	65000	10.0.0.1
