Implement VRF-Lite with EVPN/VXLAN

In the Implement VRF-Lite with VXLAN lab exercise, you learned how you can use VXLAN segments (acting as transit VLANs) to build a VRF-Lite service. In this lab exercise, we’ll do exactly the same, but use the EVPN control plane for the transit VXLAN segments.

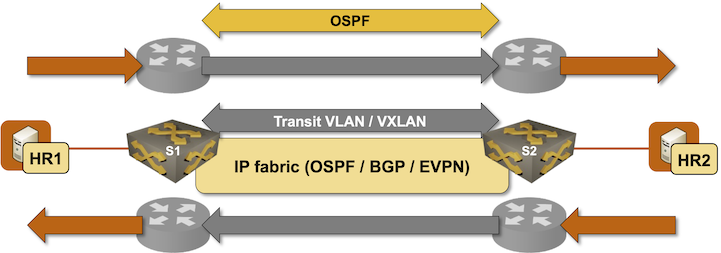

Lab topology

Effectively, you’ll:

Create a virtual LAN segment between the edge switches
Run a routing protocol in each VRF between the edge switches
Use the edge switches as regular routers: the ingress switch will route the IP packets into the VXLAN segment, and the egress switch will receive VXLAN-encapsulated Ethernet/IP frames and route them to the final destination.
The same process will happen in the reverse path, resulting in symmetrical routing.

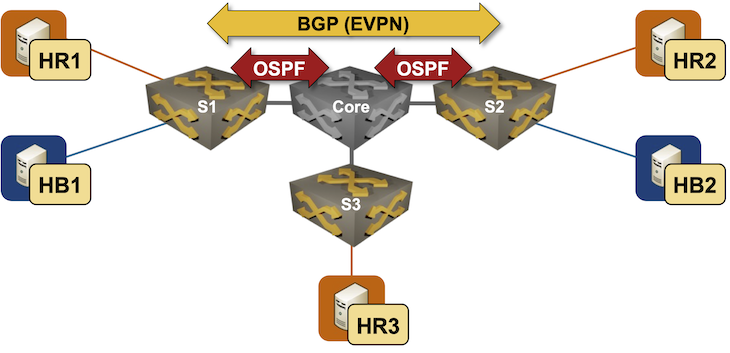

Lab topology

Tip

This is not how one would typically implement routing with EVPN, but it’s a nice transition from bridging/asymmetric IRB to EVPN symmetric IRB with type-5 EVPN routes.

Device Requirements

You can use any device supported by the netlab OSPF, BGP, and VRF configuration modules. The device should also support:

EVPN bridging with VXLAN encapsulation
Routing in and out of VXLAN tunnels (VXLAN RIOT)
Running a routing protocol on a VXLAN segment¹

Start the Lab

Assuming you already set up your lab infrastructure:

Change directory to evpn/5-vrf-lite
Execute netlab up
Log into lab devices with netlab connect and verify that the IP addresses and the OSPF are properly configured.

Existing Device Configuration

The switches in your lab (S1, S2, and S3) are preconfigured with red and blue VRFs.
IPv4 addresses are configured on all links in your lab (details).
Linux hosts use the adjacent switches as the default gateways
The switches run OSPF in area 0 in the default VRF with the core router (details).
There’s a full mesh of IBGP sessions between the three switches.

Configuration Guidelines

You’ll implement the transport between VRF instances on S1, S2, and S3 with VXLAN segments using the EVPN control plane:

Create red and blue transit VLANs for the Red and Blue VRFs (one VLAN per VRF)

VLAN	VLAN ID	Configured on
red	100	S1, S2, S3
blue	101	S1, S2

Create VLAN interfaces for the transport VLAN.
Assign the VLAN interfaces to the red/blue VRFs.
Use the following IP addresses on the VLAN interfaces:

Node/Interface	IPv4 Address	Description
s1
Vlan100	192.168.100.1/24	VLAN red (100) -> [s2,s3] (VRF: red)
Vlan101	192.168.101.1/24	VLAN blue (101) -> [s2] (VRF: blue)
s2
Vlan100	192.168.100.2/24	VLAN red (100) -> [s1,s3] (VRF: red)
Vlan101	192.168.101.2/24	VLAN blue (101) -> [s1] (VRF: blue)
s3
Vlan100	192.168.100.3/24	VLAN red (100) -> [s1,s2] (VRF: red)

Using the procedure you mastered in the Build an EVPN-based MAC-VRF instance lab exercise, create MAC-VRF instances for the red and blue VLANs.
Enable the EVPN address family on IBGP sessions
Configure VRF routing protocols between S1, S2, and S3 in red and blue VRFs. Use OSPF whenever possible, and BGP as a potential fallback.

Verification

Check EVPN routes and VXLAN segments on S1, S2, and S3. You might see only the IMET EVPN routes on some platforms (more about that in a minute)
Try to ping between the VLAN interfaces. Please note that you have to use VRF ping as the VLAN interfaces belong to Red/Blue VRFs:

Using VRF Red to ping the Red VLAN interface on S2 from S1

s1#ping vrf red 192.168.100.2
PING 192.168.100.2 (192.168.100.2) 72(100) bytes of data.
80 bytes from 192.168.100.2: icmp_seq=1 ttl=64 time=1.77 ms
80 bytes from 192.168.100.2: icmp_seq=2 ttl=64 time=1.27 ms
80 bytes from 192.168.100.2: icmp_seq=3 ttl=64 time=1.23 ms
80 bytes from 192.168.100.2: icmp_seq=4 ttl=64 time=1.02 ms
80 bytes from 192.168.100.2: icmp_seq=5 ttl=64 time=0.827 ms

--- 192.168.100.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 8ms
rtt min/avg/max/mdev = 0.827/1.222/1.768/0.315 ms, ipg/ewma 2.000/1.475 ms

Tip

If needed, follow the troubleshooting hints from the Build an EVPN-based MAC-VRF instance lab exercise.

Check in-VRF routing protocol adjacences between S1, S2, and S3. On some platforms (for example, Cisco IOS/XE), the OSPF protocol might not start, or might not work properly until you fix the missing MAC/IP routes.

OSPF neighbors (global and VRF) on S1

s1#show ip ospf neighbor vrf all
Neighbor ID     Instance VRF      Pri State                  Dead Time   Address         Interface
10.0.0.4        1        default  1   FULL                   00:00:34    10.1.0.1        Ethernet1
10.0.0.2        100      red      1   FULL/BDR               00:00:36    192.168.100.2   Vlan100
10.0.0.3        100      red      1   FULL/DR                00:00:35    192.168.100.3   Vlan100
10.0.0.2        101      blue     0   FULL                   00:00:36    192.168.101.2   Vlan101

Check VRF routing tables on S1, S2, and S3. Remote IP prefixes should be reachable as OSPF routes with next hops attached to the VLAN interfaces.

Routing table for VRF Red on S1

s1#show ip route vrf red | begin Gateway
Gateway of last resort is not set

 C        172.16.0.0/24
           directly connected, Ethernet2
 O        172.16.1.0/24 [110/20]
           via 192.168.100.2, Vlan100
 O        172.16.2.0/24 [110/20]
           via 192.168.100.3, Vlan100
 C        192.168.100.0/24
           directly connected, Vlan100

Ping between hr1, hr2, and hr3
Ping between hb1 and hb2

Does it all work? Fantastic. However, don’t congratulate yourself too quickly; depending on the platform you’re using, you might have more work to do.

Tip

Can’t get it to work? Maybe you can cheat your way to the next step:

Shut down your lab with the netlab down command
Start the lab from the solution.yml topology with the netlab up solution.yml command
Explore the S1/S2/S3 device configuration

The Curious Case of the Missing MAC Routes

Let’s revisit one particular entry in the red routing table on S1. The next hop is 192.168.100.2, and the outgoing interface is the transit VLAN interface. So far, so good.

The route toward the S2 red subnet, as observed on S1 running Arista EOS

s1#show ip route vrf red 172.16.1.0/24 detail
...
 O        172.16.1.0/24 [110/20] PM
           via 192.168.100.2, Vlan100 VLAN red (100) -> [s2,s3]

There should be an ARP entry associated with the next hop. We can see it in the ARP table for the red VRF, but there’s that curious not learned bit next to it:

The ARP table for the red VRF on S1 running Arista EOS

s1#show arp vrf red
Address         Age (sec)  Hardware Addr   Interface
172.16.0.5        0:11:41  aac1.ab43.9f43  Ethernet2
192.168.100.2     1:09:35  001c.738d.c7ca  Vlan100, not learned
192.168.100.3     3:24:02  001c.7351.01b3  Vlan100, not learned

Even worse, there are no MAC addresses in the VLAN 100 MAC address table:

The MAC address table for VLAN 100 on S1 running Arista EOS

s1#show mac address-table vlan 100
          Mac Address Table
------------------------------------------------------------------

Vlan    Mac Address       Type        Ports      Moves   Last Move
----    -----------       ----        -----      -----   ---------
Total Mac Addresses for this criterion: 0

Tip

You can stop reading and move straight to the Recap section if you see the MAC addresses for S2 and S3 in S1’s VLAN 100 MAC address table on your device. Or keep going if you’re curious 😎

How does a packet from S1 even get to S2? Remember the “flooding” bit inherent in every Ethernet implementation? Every packet sent to VLAN 100 is flooded to all the switches connected to that VLAN. Congratulations, we just turned a VXLAN segment into an ancient Ethernet cable.

How could that happen? Let’s inspect the EVPN routes for VNI 5100 (corresponding to VLAN 100). On Arista EOS, the BGP table has the IMET routes (VTEP addresses used for flooding), but no MAC/IP routes.

s1#show bgp evpn vni 5100
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.1:100 imet 10.0.0.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.2:100 imet 10.0.0.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.3:100 imet 10.0.0.3
                                 10.0.0.3              -       100     0       i

That’s by design. Arista EOS is optimized for symmetric IRB deployments with anycast gateways and does not advertise the local MAC/IP address as a type-2 EVPN route. However, most EVPN implementations have way too many nerd knobs; it’s just the question of which one to turn.

The “magic” knob to tweak is redistribute router-mac system ip on Arista EOS and default-gateway advertise enable (in l2vpn evpn instance) on Cisco IOS/XE. After configuring it on all three routers, the MAC-IP routes should appear in the EVPN table, and the ARP/MAC tables would be properly populated.

Tip

If you’re using Arista EOS or Cisco IOS/XE, you can use the netlab config system_ip --limit 's*' command to configure that nerd knob on both VLANs on all edge switches.

After configuring the advertising of system IP/MAC addresses on the VLANs 100 and 101, Arista EOS displays MAC-IP routes for all VLAN interfaces in the BGP EVPN table:

BGP EVPN table on S1 running Arista EOS

s1#show bgp evpn
BGP routing table information for VRF default
Router identifier 10.0.0.1, local AS number 65000
Route status codes: * - valid, > - active, S - Stale, E - ECMP head, e - ECMP
                    c - Contributing to ECMP, % - Pending best path selection
Origin codes: i - IGP, e - EGP, ? - incomplete
AS Path Attributes: Or-ID - Originator ID, C-LST - Cluster List, LL Nexthop - Link Local Nexthop

          Network                Next Hop              Metric  LocPref Weight  Path
 * >      RD: 10.0.0.3:100 mac-ip 001c.7351.01b3 192.168.100.3
                                 10.0.0.3              -       100     0       i
 * >      RD: 10.0.0.1:100 mac-ip 001c.735e.6484 192.168.100.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.1:101 mac-ip 001c.735e.6484 192.168.101.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.2:100 mac-ip 001c.738d.c7ca 192.168.100.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.2:101 mac-ip 001c.738d.c7ca 192.168.101.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.1:100 imet 10.0.0.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.1:101 imet 10.0.0.1
                                 -                     -       -       0       i
 * >      RD: 10.0.0.2:100 imet 10.0.0.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.2:101 imet 10.0.0.2
                                 10.0.0.2              -       100     0       i
 * >      RD: 10.0.0.3:100 imet 10.0.0.3
                                 10.0.0.3              -       100     0       i

Not surprisingly, the ARP table for the red VRF is populated with static ARP entries (the “age” field is empty) derived from the EVPN MAC-IP routes:

ARP table for the red VRF on S1 running Arista EOS

s1#show arp vrf red
Address         Age (sec)  Hardware Addr   Interface
172.16.0.5        0:30:55  aac1.ab43.9f43  Ethernet2
192.168.100.2           -  001c.738d.c7ca  Vlan100, Vxlan1
192.168.100.3           -  001c.7351.01b3  Vlan100, Vxlan1

The MAC address table for VLAN 100 also shows static MAC entries derived from the EVPN MAC-IP routes:

MAC address table for VLAN 100 on S1 running Arista EOS

s1#show mac address-table vlan 100
          Mac Address Table
------------------------------------------------------------------

Vlan    Mac Address       Type        Ports      Moves   Last Move
----    -----------       ----        -----      -----   ---------
 100    001c.7351.01b3    STATIC      Vx1
 100    001c.738d.c7ca    STATIC      Vx1

Finally, the VXLAN address table maps router MACs to VTEPs:

VXLAN address table for VLAN 100 on S1 running Arista EOS

s1#show vxlan address-table vlan 100
          Vxlan Mac Address Table
----------------------------------------------------------------------

VLAN  Mac Address     Type      Prt  VTEP             Moves   Last Move
----  -----------     ----      ---  ----             -----   ---------
 100  001c.7351.01b3  STATIC    Vx1  10.0.0.3
 100  001c.738d.c7ca  STATIC    Vx1  10.0.0.2

Recap

Let’s summarize all the bits we needed to get this solution to work:

A transit VLAN for each VRF
A MAC-VRF instance to extend that transit VLAN across all switches participating in the VRF
MAC-IP EVPN routes for VLAN MAC/IP addresses of all participating switches
ARP entries for all switches connected to the transit VLAN
MAC address entries for all switches connected to the transit VLAN
VXLAN address entries mapping router MAC addresses to VTEPs
A routing protocol running across the transit VLAN
Routing table entries pointing to next hops reachable over the transit VLAN.

And now, from the packet forwarding perspective:

Destination IP address of an incoming packet matches an entry in the VRF routing table
The outgoing interface for that entry is the transit VLAN. The routing table entry also has a next-hop IP address
Using the ARP table, the next-hop IP address is mapped into a remote MAC address.
Using the VLAN MAC address table, the remote MAC address is mapped into the VXLAN interface
Using the VXLAN address table, the remote MAC address is mapped into the remote VTEP IP address

Using the information gathered in those lookup steps, the ingress router can build the (inner) MAC header, the VXLAN header, and the UDP/IP header for the packet sent across the IP fabric.

And now we’re ready to move to the next exercise: VPN IP Routing in EVPN Fabrics.

Reference Information

Lab Wiring

Origin Device	Origin Port	Destination Device	Destination Port
s1	Ethernet1	core	eth1
s2	Ethernet1	core	eth2
s3	Ethernet1	core	eth3
hr1	eth1	s1	Ethernet2
hr2	eth1	s2	Ethernet2
hr3	eth1	s3	Ethernet2
hb1	eth1	s1	Ethernet3
hb2	eth1	s2	Ethernet3

Lab Addressing

Node/Interface	IPv4 Address	Description
s1	10.0.0.1/32	Loopback
Ethernet1	10.1.0.2/30	s1 -> core
Ethernet2	172.16.0.1/24	s1 -> hr1 (VRF: red)
Ethernet3	172.16.3.1/24	s1 -> hb1 (VRF: blue)
s2	10.0.0.2/32	Loopback
Ethernet1	10.1.0.6/30	s2 -> core
Ethernet2	172.16.1.2/24	s2 -> hr2 (VRF: red)
Ethernet3	172.16.4.2/24	s2 -> hb2 (VRF: blue)
s3	10.0.0.3/32	Loopback
Ethernet1	10.1.0.10/30	s3 -> core
Ethernet2	172.16.2.3/24	s3 -> hr3 (VRF: red)
core	10.0.0.4/32	Loopback
eth1	10.1.0.1/30	core -> s1
eth2	10.1.0.5/30	core -> s2
eth3	10.1.0.9/30	core -> s3
hr1
eth1	172.16.0.5/24	hr1 -> s1
hr2
eth1	172.16.1.6/24	hr2 -> s2
hr3
eth1	172.16.2.7/24	hr3 -> s3
hb1
eth1	172.16.3.8/24	hb1 -> s1
hb2
eth1	172.16.4.9/24	hb2 -> s2

OSPF Routing (Area 0)

Router	Interface	IPv4 Address	Neighbor(s)
s1	Loopback	10.0.0.1/32
	Ethernet1	10.1.0.2/30	core
s2	Loopback	10.0.0.2/32
	Ethernet1	10.1.0.6/30	core
s3	Loopback	10.0.0.3/32
	Ethernet1	10.1.0.10/30	core
core	Loopback	10.0.0.4/32
	eth1	10.1.0.1/30	s1
	eth2	10.1.0.5/30	s2
	eth3	10.1.0.9/30	s3

BGP Routing

Node	Router ID/ Neighbor	Router AS/ Neighbor AS	Neighbor IPv4
s1	10.0.0.1	65000
	s2	65000	10.0.0.2
	s3	65000	10.0.0.3
s2	10.0.0.2	65000
	s1	65000	10.0.0.1
	s3	65000	10.0.0.3
s3	10.0.0.3	65000
	s1	65000	10.0.0.1
	s2	65000	10.0.0.2

Some devices cannot run control-plane protocols on VXLAN segments. ↩

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search
