EVPN Asymmetric Integrated Routing and Bridging

In the previous lab exercise, we created an EVPN-based VRF that connected two stretched VLANs. We had an easy task because hosts from every VLAN were connected to every switch. Can you use the same trick if the hosts are sparsely connected (like in the lab topology we’ll use in this exercise)?

Lab topology

Of course, you can. If you extend every VLAN to every fabric switch, you get the exact same scenario as in the previous lab exercise:

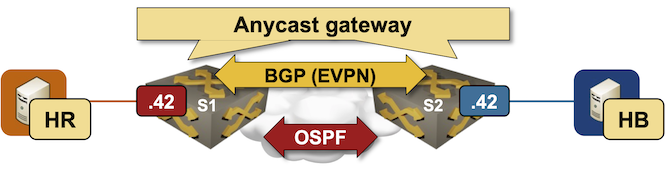

Lab topology

Obviously, you’d also create too many VLANs, extend the bridging domains, have more entries in the ARP/MAC tables on all switches, and increase flooding traffic, but that’s the price you have to pay if you don’t want to learn any new concepts ;)

Even though asymmetric IRB is clearly a bad solution in scenarios like the one described in this exercise, let’s still go through the motions and figure out how to make it work before moving on to a better solution (symmetric IRB).

Device Requirements

You can use any device supported by the netlab OSPF, BGP, and VLAN configuration modules. The device should support VXLAN and EVPN.

Start the Lab

Assuming you already set up your lab infrastructure:

  • Change directory to evpn/4-asym-irb
  • Execute netlab up
  • Log into lab devices with netlab connect and verify that the IP addresses and the OSPF are properly configured.

Existing Device Configuration

  • red VLAN is configured on S1. blue VLAN is configured on S2:
VLAN VLAN tag IPv4 prefix
red 100 172.16.10.0/24
blue 101 172.16.11.0/24
  • IPv4 addresses are configured on Linux hosts, switch loopback interfaces, and the interswitch link (details).
  • Static routes pointing to the anycast gateway are configured on the Linux hosts:
Host  IPv4 prefix Next hop
HR 172.16.0.0/16 172.16.10.42
HB 172.16.0.0/16 172.16.11.42
  • The switches run OSPF in area 0 across the interswitch link (details).
  • The switches have an IBGP session between their loopback interfaces. The IBGP session is currently configured to exchange IPv4 prefixes (details).

Configure Integrated Routing

You’ll configure the VLANs, tenant VRF, IP addresses on switch VLAN interfaces, and anycast gateways before configuring VXLAN or EVPN:

  • Configure blue VLAN and an associated VLAN interface on S1
  • Configure red VLAN and an associated VLAN interface on S2
  • Create a tenant VRF and enable IP routing in that VRF
  • Put the red and blue VLAN interfaces into the tenant VRF
  • Configure the following IP addresses on S1 and S2:
Node/Interface IPv4 Address Description
s1
Vlan100 172.16.10.1/24 VLAN red (100) -> [hr,s2] (VRF: tenant)
Vlan101 172.16.11.1/24 VLAN blue (101) -> [hb,s2] (VRF: tenant)
s2
Vlan101 172.16.11.2/24 VLAN blue (101) -> [s1,hb] (VRF: tenant)
Vlan100 172.16.10.2/24 VLAN red (100) -> [hr,s1] (VRF: tenant)
  • Using the commands you mastered in the Anycast Gateways on VXLAN Segments lab exercise, configure the anycast gateways (or active-active VRRP) on red and blue VLANs using these IP addresses:
VLAN Gateway IP address
red 172.16.10.42/24
blue 172.16.11.42/24
  • If you’re using VRRP, make sure that the switch closer to the host becomes the VRRP master

Configure VXLAN and EVPN

Using the procedure you mastered in the Build an EVPN-based MAC-VRF instance and Integrated Routing and Bridging (IRB) with EVPN lab exercises, configure:

  • EVPN address family on the S1-S2 IBGP session
  • MAC-VRF for the red and blue VLANs on S1 and S2 using these parameters:
VLAN VNI route target
red 10010 65000:100
blue 10011 65000:101
  • Any additional nerd knobs that might be required to make IRB work on your platform.

Verification

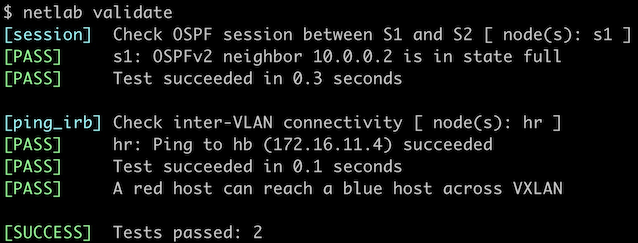

If you used FRRouting or Arista EOS devices as the lab switches, you can use the netlab validate command to check your work:

Validation results

Alternatively, use ping to check that HR and HB can communicate (proving that inter-subnet routing across VXLAN segments works):

$ netlab connect hr ping -c 3 hb
Connecting to container clab-asymirb-hr, executing ping -c 3 hb
PING hb (172.16.11.4): 56 data bytes
64 bytes from 172.16.11.4: seq=0 ttl=63 time=2.307 ms
64 bytes from 172.16.11.4: seq=1 ttl=63 time=1.944 ms
64 bytes from 172.16.11.4: seq=2 ttl=63 time=2.407 ms

--- hb ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 1.944/2.219/2.407 ms

Use the troubleshooting hints from the Build an EVPN-based MAC-VRF instance and Integrated Routing and Bridging (IRB) with EVPN lab exercises if needed (we expect you’re familiar with the traditional routing between VLAN segments).

Cheating

  • Shut down your lab with the netlab down command
  • Start the lab from the solution.yml topology with the netlab up solution.yml command
  • Explore the S1/S2 device configuration

Reference Information

Lab Wiring

Origin Device Origin Port Destination Device Destination Port
s1 Ethernet1 s2 Ethernet1
hr eth1 s1 Ethernet2
hb eth1 s2 Ethernet2

Lab Addressing

Node/Interface IPv4 Address IPv6 Address Description
s1 10.0.0.1/32 Loopback
Ethernet1 10.1.0.1/30 s1 -> s2
s2 10.0.0.2/32 Loopback
Ethernet1 10.1.0.2/30 s2 -> s1
hr
eth1 172.16.10.3/24 hr -> s1 [red VLAN]
hb
eth1 172.16.11.4/24 hb -> s2 [blue VLAN]

OSPF Routing (Area 0)

Router Interface IPv4 Address Neighbor(s)
s1 Loopback 10.0.0.1/32
Ethernet1 10.1.0.1/30 s2
s2 Loopback 10.0.0.2/32
Ethernet1 10.1.0.2/30 s1

BGP Routing

Node Router ID/
Neighbor		 Router AS/
Neighbor AS		 Neighbor IPv4
s1 10.0.0.1 65000
s2 65000 10.0.0.2
s2 10.0.0.2 65000
s1 65000 10.0.0.1
