More Complex EVPN/VXLAN Bridging Scenario
After finishing the Build an EVPN-based MAC-VRF instance lab exercise, let’s do a slightly more complex scenario:
- We’re extending several VLANs across an underlay network;
- Some VLANs are not present on all switches;
- We’re using different VLAN tags for the Red bridge domain1

The lab exercise will help you clarify some key points about the EVPN control plane:
- EVPN supports numerous MAC VRFs on a single device, and is usually limited only by the number of bridging domains supported by your hardware.
- VLAN tags have local significance. EVPN updates include only VXLAN VNI.
Tip
In theory, you could use different VNIs in the same MAC-VRF instance; all that matters (to EVPN) is the match between import route targets configured in a MAC-VRF and the route targets attached to an incoming EVPN route. Unfortunately, not all platforms support this setup; for example, it works with Nokia SR Linux but not with Arista cEOS.
- The VXLAN ingress replication list is built from EVPN type-3 routes and can be different for every VNI.
Device Requirements
You can use any device supported by the netlab OSPF, BGP, and VLAN configuration modules. The device should support VXLAN and EVPN.
The Linux hosts attached to the lab switches are implemented with containers; your netlab installation will thus have to include Docker and containerlab2.
Start the Lab
Assuming you already set up your lab infrastructure:
- Change directory to
evpn/2-complex - Execute netlab up
- Log into lab devices with netlab connect and verify that the IP addresses and the OSPF are properly configured.
Existing Device Configuration

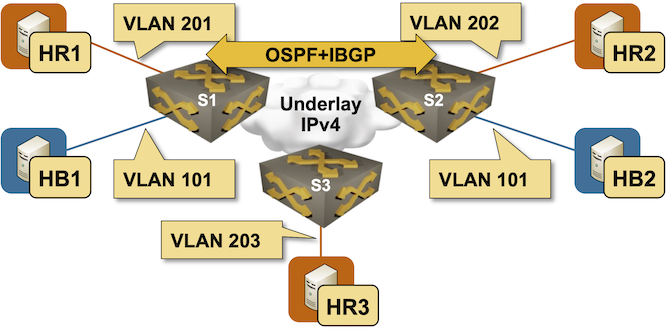

- The switches in your lab (S1, S2, and S3) are preconfigured with red and blue VLANs. The VLANs use these VLAN tags:
| VLAN | switch | VLAN tag |
|---|---|---|
| red | S1 | 201 |
| S2 | 202 | |
| S3 | 203 | |
| blue | S1 | 101 |
| S2 | 101 |
- IPv4 addresses are configured on Linux hosts, switch loopback interfaces, and the interswitch link (details).
- The switches run OSPF in area 0 across the interswitch link (details).
- The switches have IBGP sessions between their loopback interfaces. These sessions are currently configured to exchange IPv4 prefixes (details).
Configuration Tasks
Using the commands you mastered in the Build an EVPN-based MAC-VRF instance lab exercise:
- Enable EVPN address family on the IBGP sessions
- Configure VLAN-to-VXLAN mapping on all switches using these VNIs:
| VLAN | VNI |
|---|---|
| red | 1000 |
| blue | 1001 |
- Configure MAC-VRFs for red and blue VLANs.
If you feel adventurous, use a different VNI for the red MAC-VRF on every switch, for example:
| switch | red VNI |
|---|---|
| S1 | 1201 |
| S2 | 1202 |
| S3 | 1203 |
Warning
- Some platforms (for example, Arista cEOS) do not support multiple VNIs per MAC-VRF
- Make sure you use the same import/export route targets in all instances of the red MAC-VRF, or your setup has no chance of working.
Verification
- Ping HR2 and HR3 from HR1 using a command similar to netlab connect hr1 ping hr2
- Ping HB2 from HB1
Use the troubleshooting hints from the previous lab exercise if you can’t establish end-to-end connectivity.
Done? Let’s add routing (inter-VLAN forwarding) to the mix.
Cheating
- Shut down your lab with the netlab down command
- Start the lab from the
solution.ymltopology with the netlab up solution.yml command - Explore the device configurations
Reference Information
Lab Wiring
| Origin Device | Origin Port | Destination Device | Destination Port |
|---|---|---|---|
| s1 | Ethernet1 | s2 | Ethernet1 |
| s2 | Ethernet2 | s3 | Ethernet1 |
| s3 | Ethernet2 | s1 | Ethernet2 |
| s1 | Ethernet3 | hr1 | eth1 |
| s2 | Ethernet3 | hr2 | eth1 |
| s3 | Ethernet3 | hr3 | eth1 |
| s1 | Ethernet4 | hb1 | eth1 |
| s2 | Ethernet4 | hb2 | eth1 |
Lab Addressing
| Node/Interface | IPv4 Address | IPv6 Address | Description |
|---|---|---|---|
| s1 | 10.0.0.1/32 | Loopback | |
| Ethernet1 | 10.1.0.1/30 | s1 -> s2 | |
| Ethernet2 | 10.1.0.9/30 | s1 -> s3 | |
| s2 | 10.0.0.2/32 | Loopback | |
| Ethernet1 | 10.1.0.2/30 | s2 -> s1 | |
| Ethernet2 | 10.1.0.5/30 | s2 -> s3 | |
| s3 | 10.0.0.3/32 | Loopback | |
| Ethernet1 | 10.1.0.6/30 | s3 -> s2 | |
| Ethernet2 | 10.1.0.10/30 | s3 -> s1 | |
| hr1 | |||
| eth1 | 172.16.0.4/24 | hr1 -> [s1] | |
| hr2 | |||
| eth1 | 172.16.0.5/24 | hr2 -> [s2] | |
| hr3 | |||
| eth1 | 172.16.0.6/24 | hr3 -> [s3] | |
| hb1 | |||
| eth1 | 172.16.1.7/24 | hb1 -> [s1,hb2,s2] | |
| hb2 | |||
| eth1 | 172.16.1.8/24 | hb2 -> [hb1,s1,s2] |
OSPF Routing (Area 0)
| Router | Interface | IPv4 Address | Neighbor(s) |
|---|---|---|---|
| s1 | Loopback | 10.0.0.1/32 | |
| Ethernet1 | 10.1.0.1/30 | s2 | |
| Ethernet2 | 10.1.0.9/30 | s3 | |
| s2 | Loopback | 10.0.0.2/32 | |
| Ethernet1 | 10.1.0.2/30 | s1 | |
| Ethernet2 | 10.1.0.5/30 | s3 | |
| s3 | Loopback | 10.0.0.3/32 | |
| Ethernet1 | 10.1.0.6/30 | s2 | |
| Ethernet2 | 10.1.0.10/30 | s1 |
IBGP sessions
| Node | Router ID/ Neighbor |
Router AS/ Neighbor AS |
Neighbor IPv4 |
|---|---|---|---|
| s1 | 10.0.0.1 | 65000 | |
| s2 | 65000 | 10.0.0.2 | |
| s3 | 65000 | 10.0.0.3 | |
| s2 | 10.0.0.2 | 65000 | |
| s1 | 65000 | 10.0.0.1 | |
| s3 | 65000 | 10.0.0.3 | |
| s3 | 10.0.0.3 | 65000 | |
| s1 | 65000 | 10.0.0.1 | |
| s2 | 65000 | 10.0.0.2 |
